Jixing-Tech

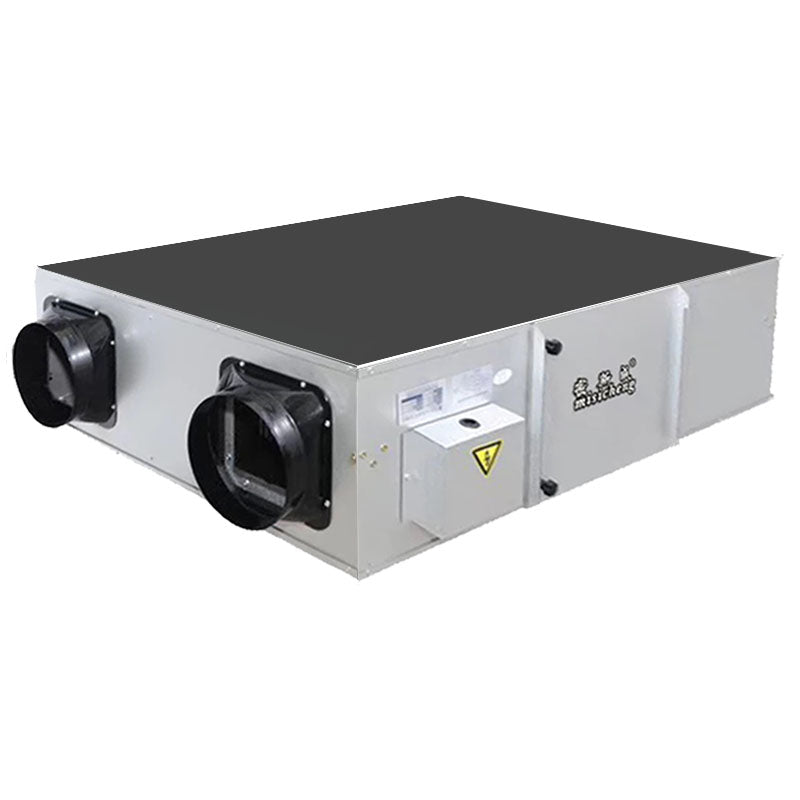

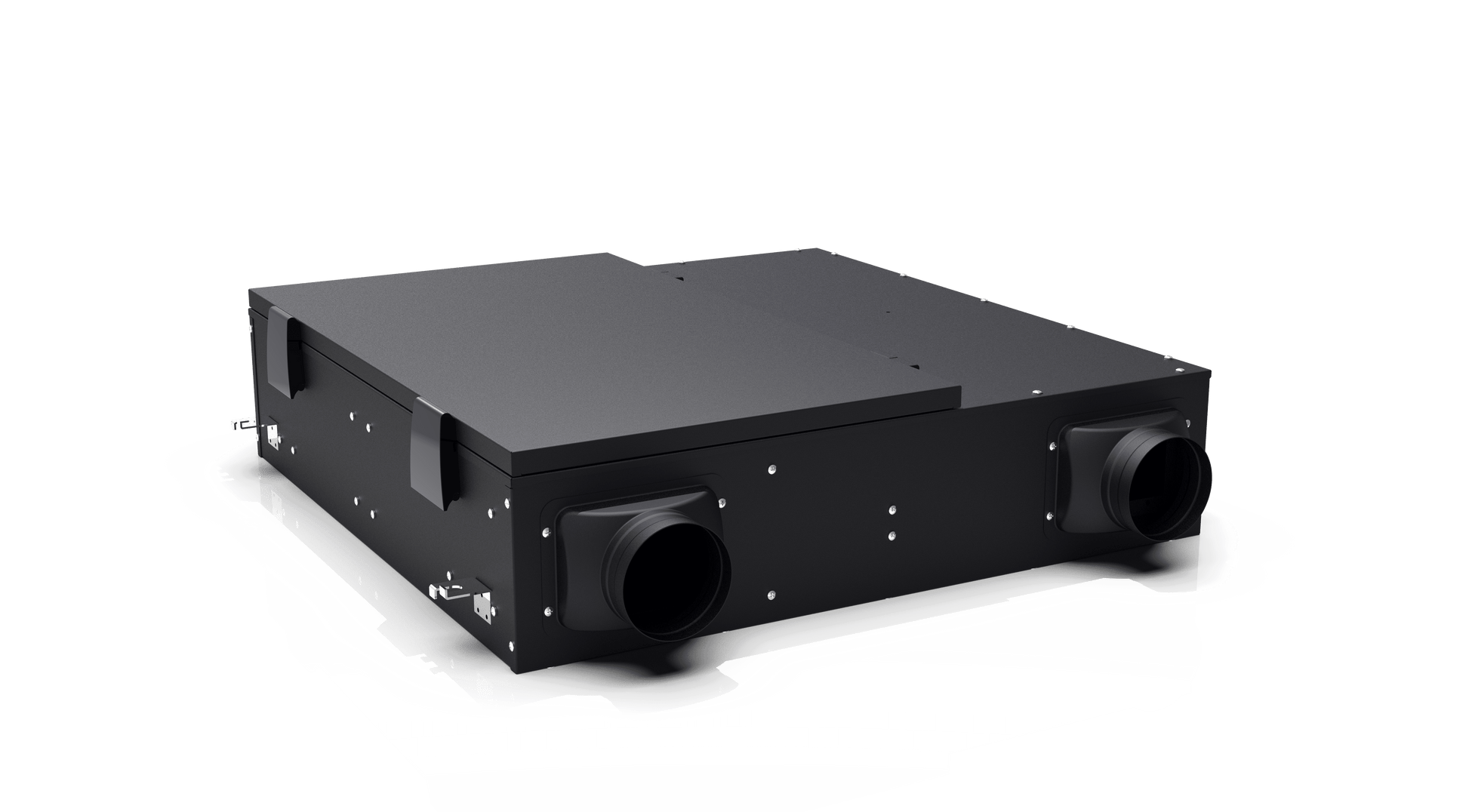

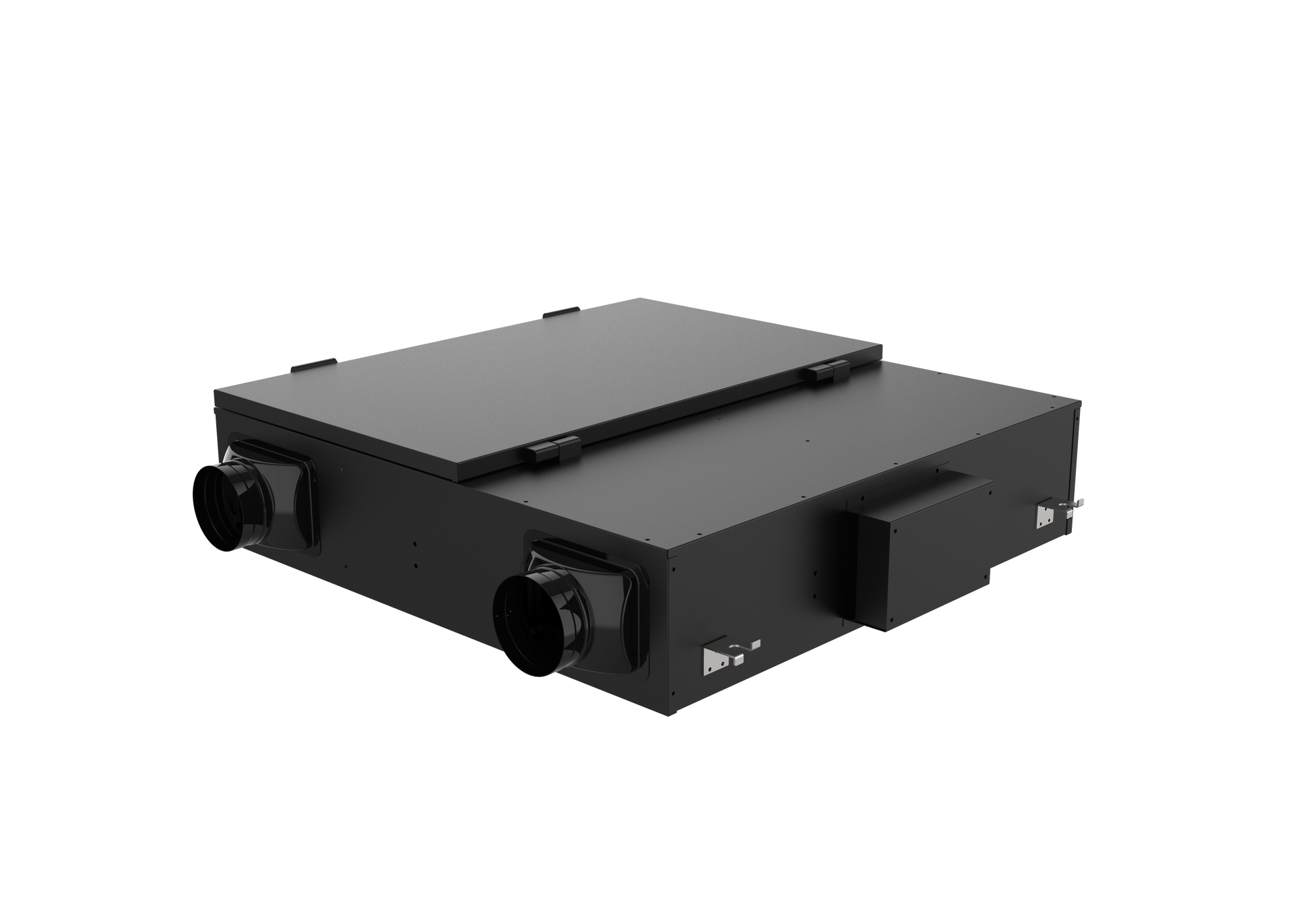

Heat Recovery Ventilator - HRV

Heat Recovery Ventilator - HRV

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
  • The whole heat exchange core body is composed of nano microporous heat exchange membrane made of environmentally friendly ABS frame polymer imported material, which has higher heat conduction and moisture permeability, good airtight safety, tear resistance, aging resistance and mildew resistance.
  • Built-in primary filter, sterilization filter, activated carbon adsorption layer, HEPA filter, four layers of filtration perfect combination, PM2.5 filtration more than 95%
  • High protection motor(IP54)
  • Body spray treatment, beautiful appearance, strong corrosion resistance.
  • Standard intelligent lCd display controller, 24-hour intelligent monitoring of air quality indicators
Model

Voltage

/Frequency

Power
(W)
Air Volume
(m³/h)
Static Pressure
(Pa)
Noise
(db)
Connection Diameter
(mm)
Temperature Exchange Rate Enthalpy
Exchange Rate
(Cool)
Enthalpy
Exchange Rate
(Heat)
JXH15-50 220V
/ 50Hz
80 500/350 150/90 40/36 150 75% / 77% 64% / 68% 68% / 75%
JXH20-80 150 800/600 160/130 42/38 200 75% / 75% 63% / 66% 67% / 73%
JXH20-100 160 1000/800 180/165 45/40 200 74% / 75% 63% / 66% 67% / 73%
JXH20-120 180 1200/900 190/175 46/41 200 74% / 75% 62% / 66% 66% / 72%
JXH25-150 240 1500/1200 195/180 46/41 250 73% / 74% 62% / 65% 65% / 72%

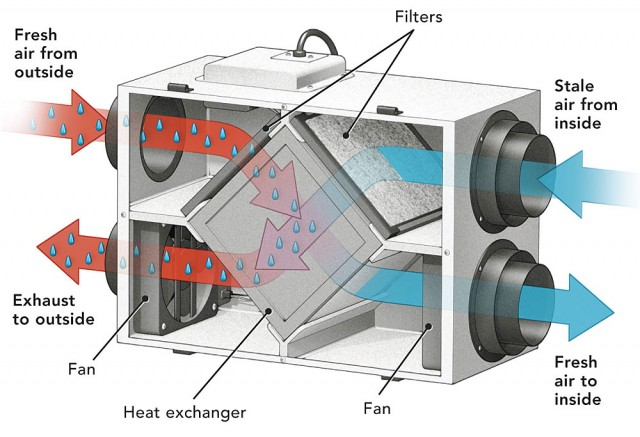

Heat exchange between air(Sensible heat+Laten heat) system
ABS and napo paper anti mold/Hydrophilic alumium foil heating recovery core
304 stainless steel air filter
High strength metal
